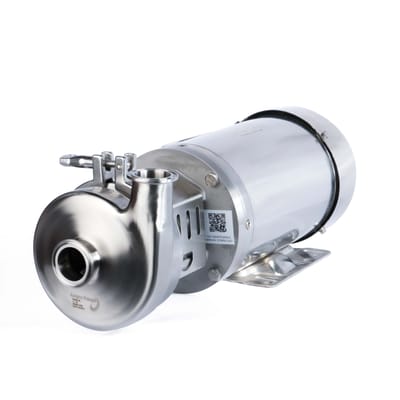

Ampco CB+ 114 Craft Brewery Pump
Overview
Ampco's CB+ series of pumps are an upgrade to the classic C-Series pump design found in nearly every brewery. If you've tried moving hot wort with your normal C-Series pump, you know that near-boiling temperatures can cause premature seal failure that lead to a leaky pump. The CB+ solves these problems by submerging the internal seal to help promote cooling. It's tough to visualize, but easy to see the results. No more leaks!
In all other respects, the CB+ 114 looks, acts, and performs like Ampco's AC-Series heads. Ampco pumps set the standard for reliability and quality, so you know you'll be getting a premium pump.
We offer these pumps either as a bare motor + head assembly, or mounted on a cart with VFD and optional remote control.
Specifications:- 1.5" TC inlet/outlet (custom ports available)
- 316 Stainless steel head
- Washdown-duty stainless steel TEFC motor
- 2 HP 230/460V dual voltage motor
- 3500 RPM
- 3.5" impeller
- Flow rates up to 110 GPM
- Up to 58 feet of head
- Requires minimum 8 feet NPSH
