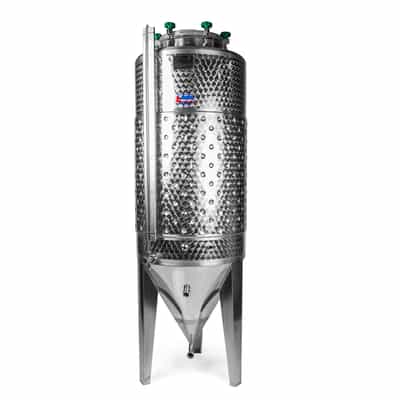

Conical Beer Fermenters
Overview
Designed and manufactured in Europe, our conical beer fermenters from L-Inox are manufactured to exacting specifications and designed for discerning craft breweries of all sizes.
Standard features on all tanks:- 304 Stainless Steel construction with engine-turned exterior pattern
- Bright annealed interior polish
- 60° Conical bottom
- 500 mm tall (20 inch) cooling Jacket with 3/4-inch NPT inlet/outlet
- 400 mm (15.75 inches) top manway
- 3/4-inch thermowell and sample valve ports
- Tank level indicator
- 1.5" Tri Clamp top valve port
- 2" Tri Clamp drain valve port
- 1.5" Tri Clamp top manway port for tank cleaning head
- 1/2" NPT manway safety valve port
- 2" TC manway tank vent port
- A4 Laveggi "Shadowless" Side Manway
- Side-mounted 1.5" Tri Clamp inlet for top spray ball port
Valves sold separately. Tanks are built to order with 60-90 day lead times. Custom configurations available. Inquire for more details.
Capacities and Approximate Conversions
| Liters | Gallons | BBL |
|---|---|---|
| 300 | 79 | 2.5 |
| 400 | 106 | 3.5 |
| 500 | 132 | 4.25 |
| 600 | 159 | 5 |
| 750 | 198 | 6.5 |
| 1000 | 264 | 8.5 |
| 2000 | 528 | 17 |
| 2500 | 660 | 21.25 |
| Cooling Jacket | Yes |
| Interior Polish | Bright Annealed |
| Exterior Polish | Engine Turned Pattern |
| Material | 304 Stainless Steel |
| Max Operating Pressure | 2 bar / 29 psi |
| Test Pressure | 3.3 Bar / 47.9 psi |
