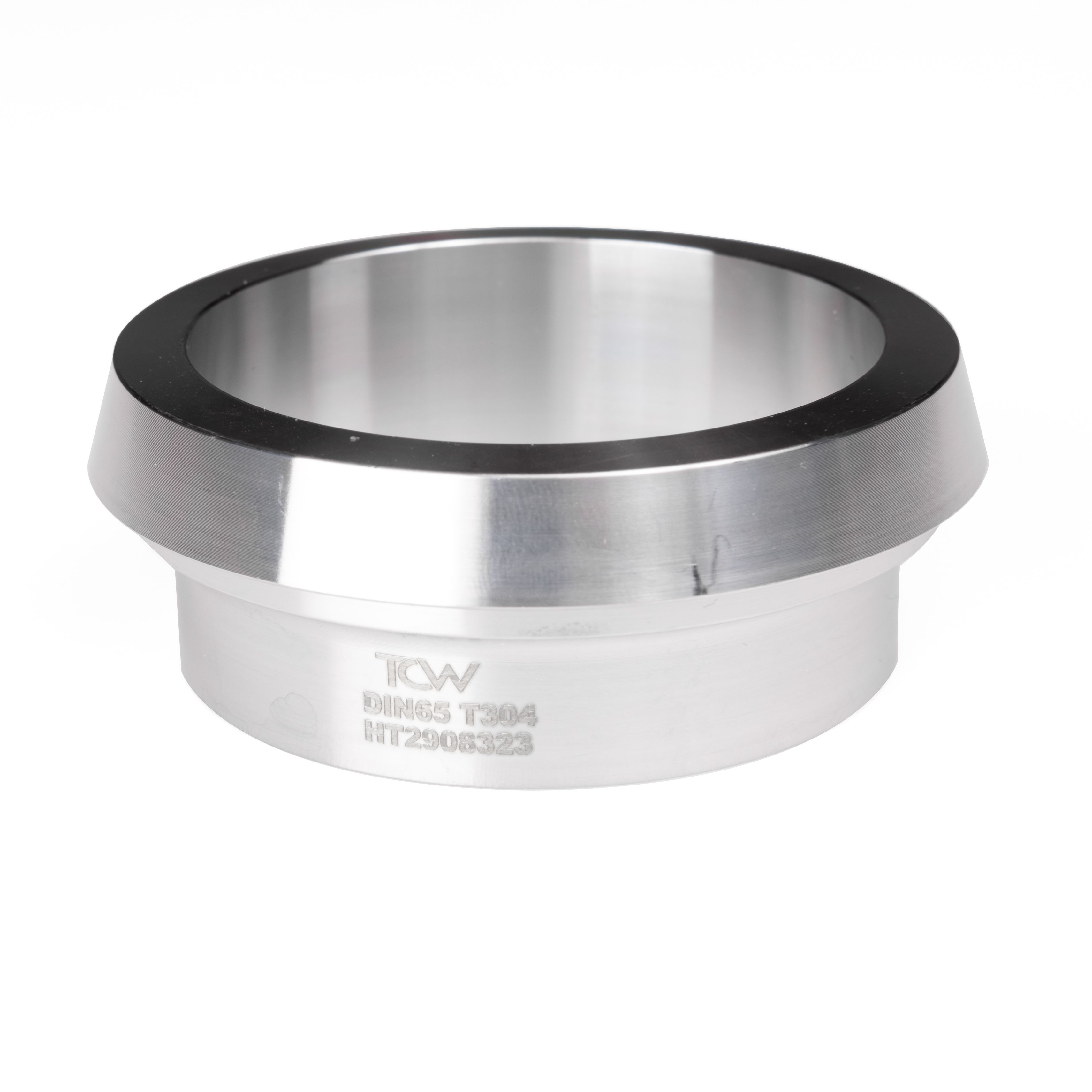

DIN 11851 Threaded Weld Liner
Overview
This 304 SS weld liner should be paired with a DIN nut. Double-check that one is facing the correct direction before you start welding this on.
The DIN liner's job is to press up against the threaded male DIN ferrule, and seal against the face of that ferrule's gasket as the nut is tightened.If you would like to join a DIN fitting to US/Inch tubing, there are some sizes that work best:
- 25 mm fits with 1" tubing
- 32 mm fits with 1.25" tubing
- 40 mm fits with 1.5" tubing
- 50 mm fits with 2" tubing
- 80 mm fits with 3" tubing
