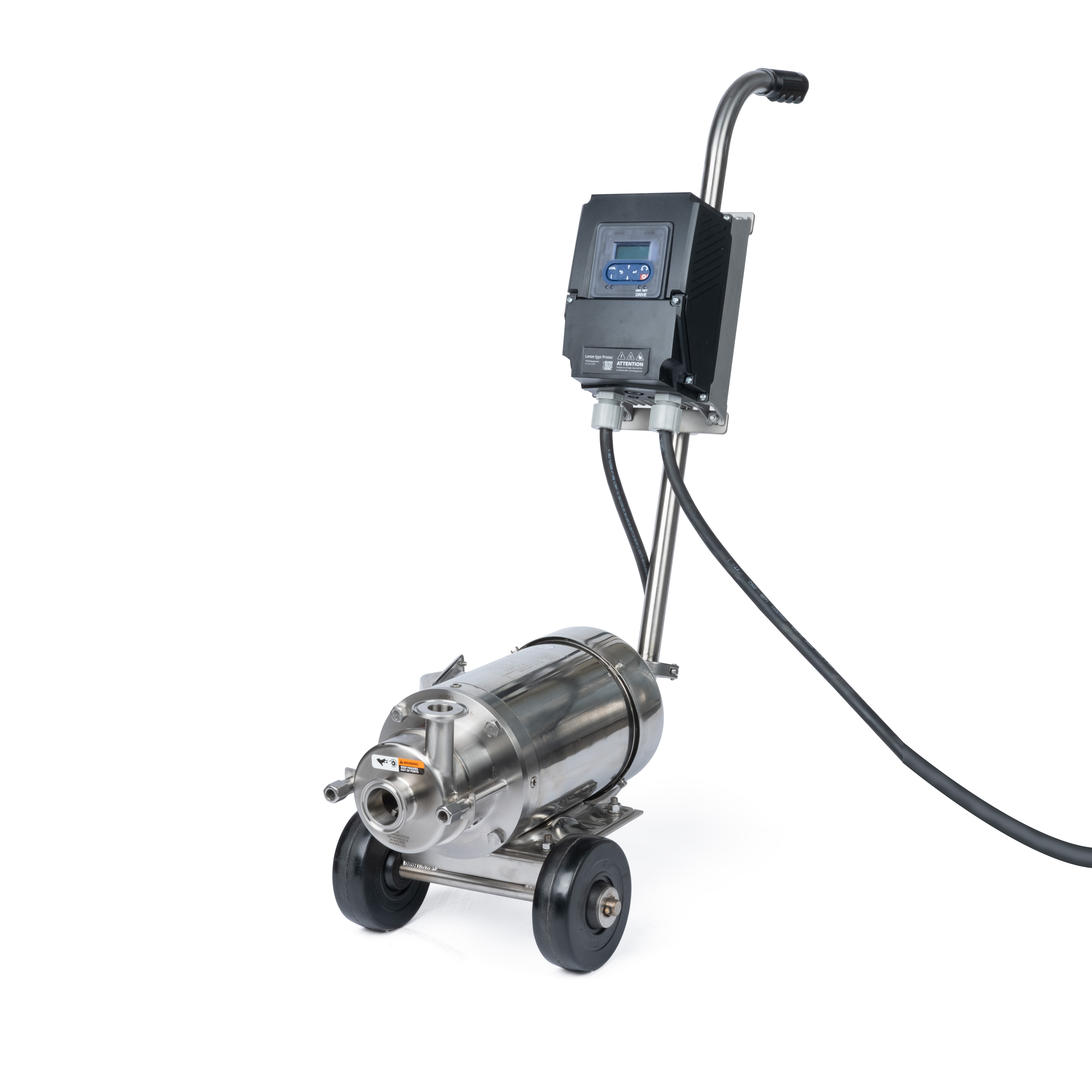

Easy Ship Top-Flo C100MD Centrifugal Pump

Topline's C100MD centrifugal pump is a small guy, as centrifugal pump heads go. But don't let the size fool you. It has plenty of power to get your product where it needs to go. With a max flow rate of about 65 GPM, it's ready to fill barrels, empty totes, or perform tank-to-tank transfers. All off of standard US 115 V power.

The 1.5 HP motor and VFD will provide you with sufficient power to get up to about 23 PSI of head pressure (54 feet), making it additionally useful for CIP and other washdown applications.

We use a stainless steel washdown-duty motor, all mounted to our stainless steel Easy Ship carts that allow the pump to travel via parcel carrier rather than needing to move by freight.

• Top-Flo C100MD 304 SS pump head
• 1.5" TC Flange in/out (1.5" in x 1" out tube size)
• FDA Buna elastomers
• Type D Seal
• Stainless steel washdown-duty motor 1.5 HP
• Variable frequency drive to control motor speed
• Requires 115 or 230 V (Customer Specified), non-GFI outlet
