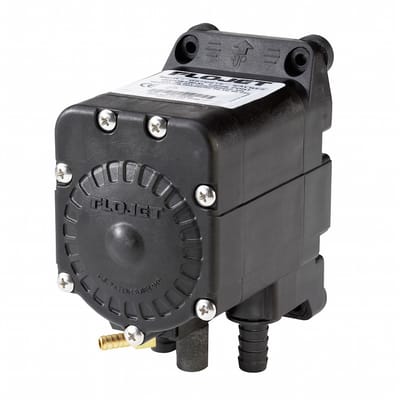

Flojet G70 High Proof Air Diaphragm Pump

$951.00

TCW P/N: 5506FP-G70-ATEX

Overview

ATEX approval (ATmosphere EXplosive) makes this small air diaphragm pump perfect for jobs involving high-proof alcohol transfer where safety and compliance with regulations is critical.

Its wetted parts are composed of Kalrez®, Polypropylene, Viton® Extreme, and Hastelloy®, all of which have excellent compatibility with up to 100% pure ethyl alcohol.

It is fully groundable, with a short length of grounding cable affixed, allowing you to connect it to earth ground and minimize the risks associated with static electricity build-up.

We strongly recommend pairing this with the Flojet In-Line Strainer to protect the diaphragms from debris that could clog the pump.

Properties
Minimum Air Flow Required20 psi @ 1 SCFM (3.2 GPM flow)
Maximum Air Flow Allowed100 psi @ 2.2 SCFM (5 GPM flow)
Diaphragm MaterialsKalrez®
Liquid Flow Rate5 GPM
Liquid Inlet/Outlet Port Size3/4" Hose Barbs
Air Inlet Port Size1/4" Hose Barb
Operating Temperature Range40–120 °F
