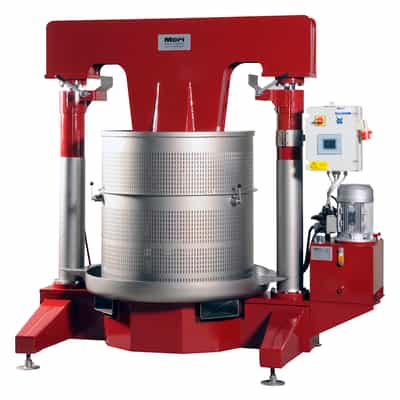

Mori PZ FL2C Quad Ram Basket Presses

Please select from the options below
$67,495.00 - $79,595.00

Requires Freight Shipping

This item is too large to ship by parcel carriers. We'll ship it on a pallet and reach out to you with freight quotes prior to shipping. Keep in mind that heavier pallets are usually cheaper to ship than lighter ones, so consider adding more items to your order to save on shipping costs overall.

Harvest Order Item

Harvest items arrive from Europe once a year, in time for the wine harvest season.

Usually we get our containers from Europe in late July, sometimes early August depending on port conditions.

If you are interested in purchasing equipment for the current year's harvest, you must place an order with at least 50% deposit no later than April 1st of the same year. You can contact us to place a deposit, or place your order online to secure delivery in time for harvest.

Overview

Mori's PZ FL 2C series basket presses represent Mori's top-of-the-line press, for whom quality, convenience, and repeatability are of utmost importance. Forklift channels in the press tray allow you to load and unload with ease.

The 2C series contains four different hydraulic pistons. The main dual pistons on either side of the press move the pressing platen up and down, exerting up to 40 metric tons of force (about 88,000 pounds) over the 95 cm pressing plate.

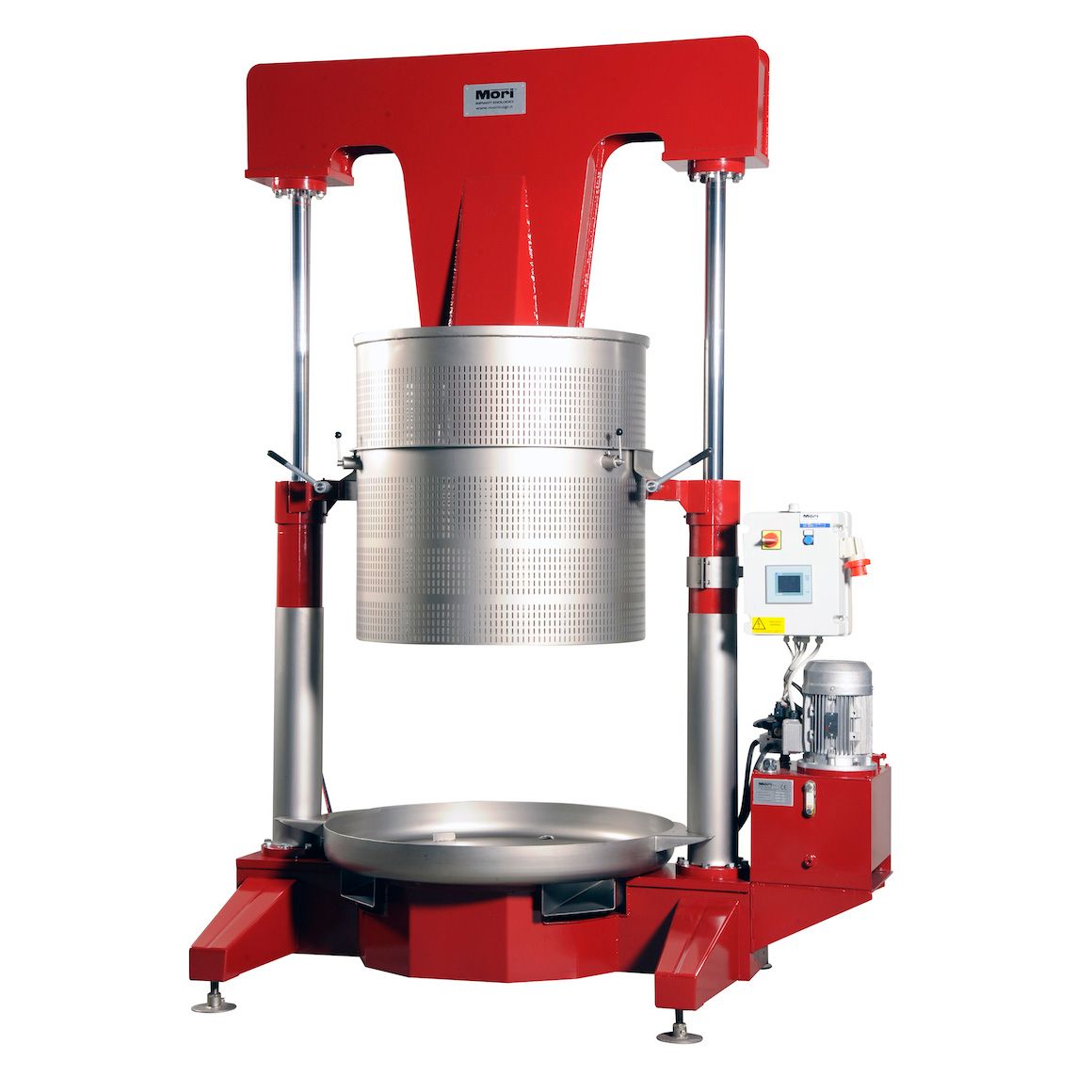

The smaller side hydraulic pistons allow you to separately move the basket up and down. After pressing, this allows you to quickly move the basket up and out of the way so that you can forklift the tray containing the pressed-out cake for dumping. Users who are focused on increasing throughput often purchase an additional tray so that they can unload the pressed cake, quickly swap in the new tray, and lower the basket onto the new tray so they can load and press the next batch, dumping out the previous batch during the next pressing cycle.

PZ FL 2C presses come standard with a preprogrammed PLC containing several pressing "recipes". They also allow you to program or customize your own press times and set pressures so that you can simply load the basket and hit "start" on your ideal pressing program.

Specifications:
  • Sturdy steel frame
  • Stainless steel one-piece basket with removable juice screen,
  • Stainless steel pan and pressing ram/platen
  • Heavy-duty double hydraulic pumps allow you to go fast when moving the ram out of the way or slow for high pressure pressing.
  • Maximum load of approximately 2.3 tons (PZ 96 FL 2C), or 4 tons (PZ 97 FL 2C) of fermented red grapes
  • Extended ram reaches to within 4” of pan for a very small minimum load of approximately 0.3 tons
  • Automatic on/off at 50 bar differential during pressing
  • Maximum Cylinder Hydraulic Pressure of 180 bar
  • Maximum effective load pressure of 40 metric tons
  • Programmable PLC standard allows you to use preprogrammed pressing recipes, or create and save your own

See a forkliftable PZ series press working with white grapes:
