Mori V-Series Volumetric Must Pump

Please select from the options below
$5,195.00 - $10,195.00

Requires Freight Shipping

This item is too large to ship by parcel carriers. We'll ship it on a pallet and reach out to you with freight quotes prior to shipping. Keep in mind that heavier pallets are usually cheaper to ship than lighter ones, so consider adding more items to your order to save on shipping costs overall.

Harvest Order Item

Harvest items arrive from Europe once a year, in time for the wine harvest season.

Usually we get our containers from Europe in late July, sometimes early August depending on port conditions.

If you are interested in purchasing equipment for the current year's harvest, you must place an order with at least 50% deposit no later than April 1st of the same year. You can contact us to place a deposit, or place your order online to secure delivery in time for harvest.

Overview

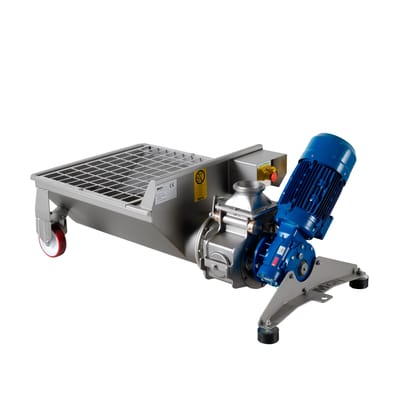

Mori's V-Series Volumetric Must Pumps are a gentle and economical way to move must, pomace, crushed fruit, and other solids in suspension. A built-in auger screw hopper allows placement directly underneath a tank manway or a destemmer for easy transfer of large solids. Volumetric pumps are best for facilities that need a dedicated must pump, as they can't do double-duty as liquid transfer pumps.

Volumetric pumps are known for being quite gentle on solids, though not as gentle as the Ragazzini Rotho peristaltic (nor as powerful powerful in terms of pumping distance/pressure). However, since they are a fraction of the cost, they represent a good compromise between economy, quality, and pumping power.

Note: Mori V-Series pumps are available by special order only. For harvest delivery we require that orders be placed by April. Contact us directly to see if we have any on-hand stock, or to inquire about current lead times

V10 Specifications
  • 5 TPH throughput
  • 2 HP, 230 V Three Phase motor
  • Max discharge distance: 50 feet
  • Max discharge height: 6.5 feet
V15 Specifications
  • 10 TPH throughput
  • 5.3 HP, 230 V Three Phase motor
  • Max discharge distance: 82 feet
  • Max discharge height: 13 feet
V18 Specifications
  • 18 TPH throughput
  • 7.5 HP, 230 V Three Phase motor
  • Max discharge distance: 100 feet
  • Max discharge height: 13 feet
V20 Specifications
  • 30 TPH throughput
  • 7.5 HP, 230 V Three Phase motor
  • Max discharge distance: 115 feet
  • Max discharge height: 13 feet
Properties
Electrical Requirements230 V Three Phase
Outlet Port Size4" TC (V10-V18), 5" TC (V20)
