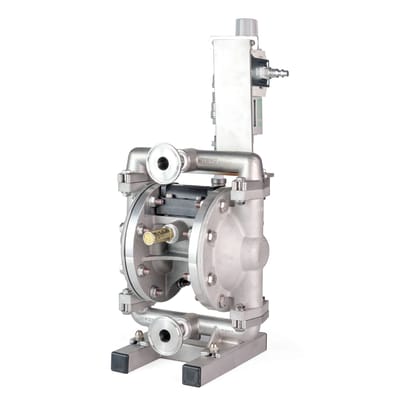

SimpleSpirits 12 Air Diaphragm Distillery Pump
SimpleSpirits 12 is a small, groundable Air-Operated Diaphragm Pump specifically for distilleries. It's composed of materials that have great compatibility with high-proof spirits.
Overview
The SimpleSpirits 12 is a great first pump for distilleries. It's small, robust, and makes short work of barrel transfers without breaking the bank. It's small enough to carry by hand (about 18 pounds), but many folks like the extra stability and protection that cart-mounting offers.
SimpleSpirits pumps are groundable and ATEX-rated for transferring high-proof spirits and other flammable materials when properly grounded and used as directed.
12 GPM lets you empty standard-sized barrels in about five minutes, making this pump a great choice for barrel work and general transfers.
As with all of our SimpleSeries pumps, we outfit the pump for quick plug-and-play use with a 1/4" quick-disconnect inlet fitting, air filter/regulator, and a ball valve to control air flow.
Specifications:- 316 Stainless Steel body
- EPDM diaphragms provide
- Aluminum air motor
- 1/4" quick-disconnect air inlet
- Air filter/regulator
- 1/2" NPT inlet outlet ports, with 1.5" TC adapters threaded in
- 1.5" Tri Clamp inlet/outlet
| Liquid Inlet/Outlet Port Size | 1.5" TC |
| Maximum Flow Rate | 12 GPM |
| Body Material | 316 Stainless Steel |
| Air Motor Material | Aluminum |
| Operating Temperature | -40° F/ 220 °F |
| Open Discharge Flow Rate @ 2, 4, 8 or 12 CFM | 4, 8, 10, 12 GPM |
