Sraml Bin Tipper

Request a Quote

Requires Freight Shipping

This item is too large to ship by parcel carriers. We'll ship it on a pallet and reach out to you with freight quotes prior to shipping. Keep in mind that heavier pallets are usually cheaper to ship than lighter ones, so consider adding more items to your order to save on shipping costs overall.

Harvest Order Item

Harvest items arrive from Europe once a year, in time for the wine harvest season.

Usually we get our containers from Europe in late July, sometimes early August depending on port conditions.

If you are interested in purchasing equipment for the current year's harvest, you must place an order with at least 50% deposit no later than April 1st of the same year. You can contact us to place a deposit, or place your order online to secure delivery in time for harvest.

Overview

Facilities that use macro bins all face the same challenge: how do you get material out of the bin and into your processing equipment safely and easily? Forklift-mounted bin tippers are one solution, but having a bin up 15 feet in the air teetering precariously can be nerve-wracking. Significant operator training is required.

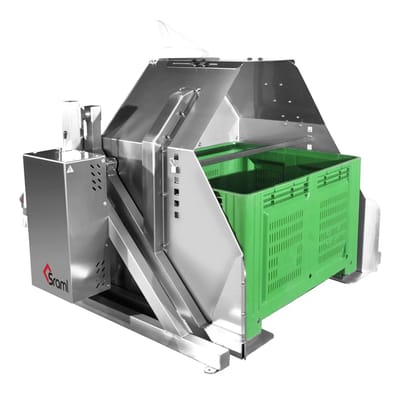

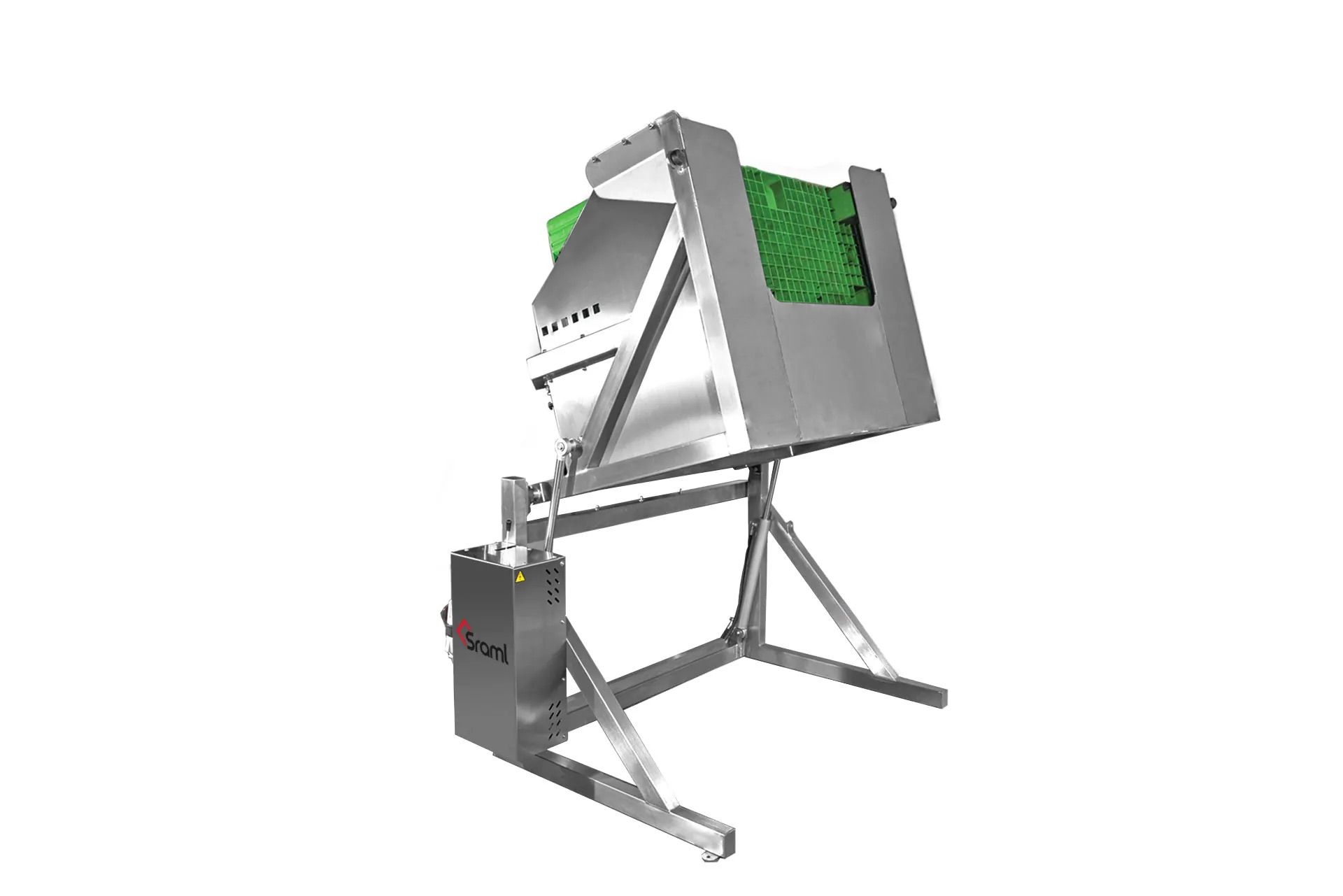

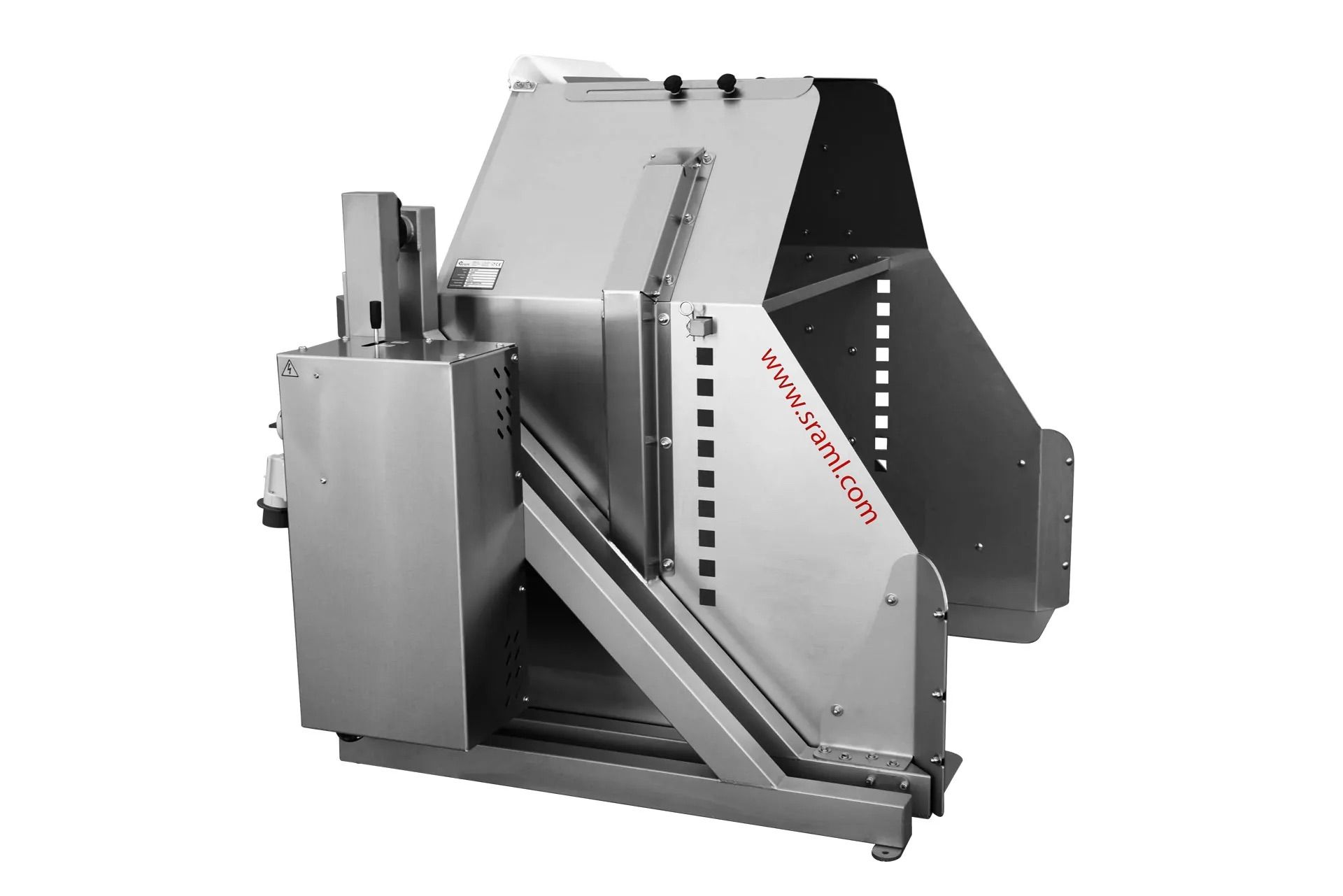

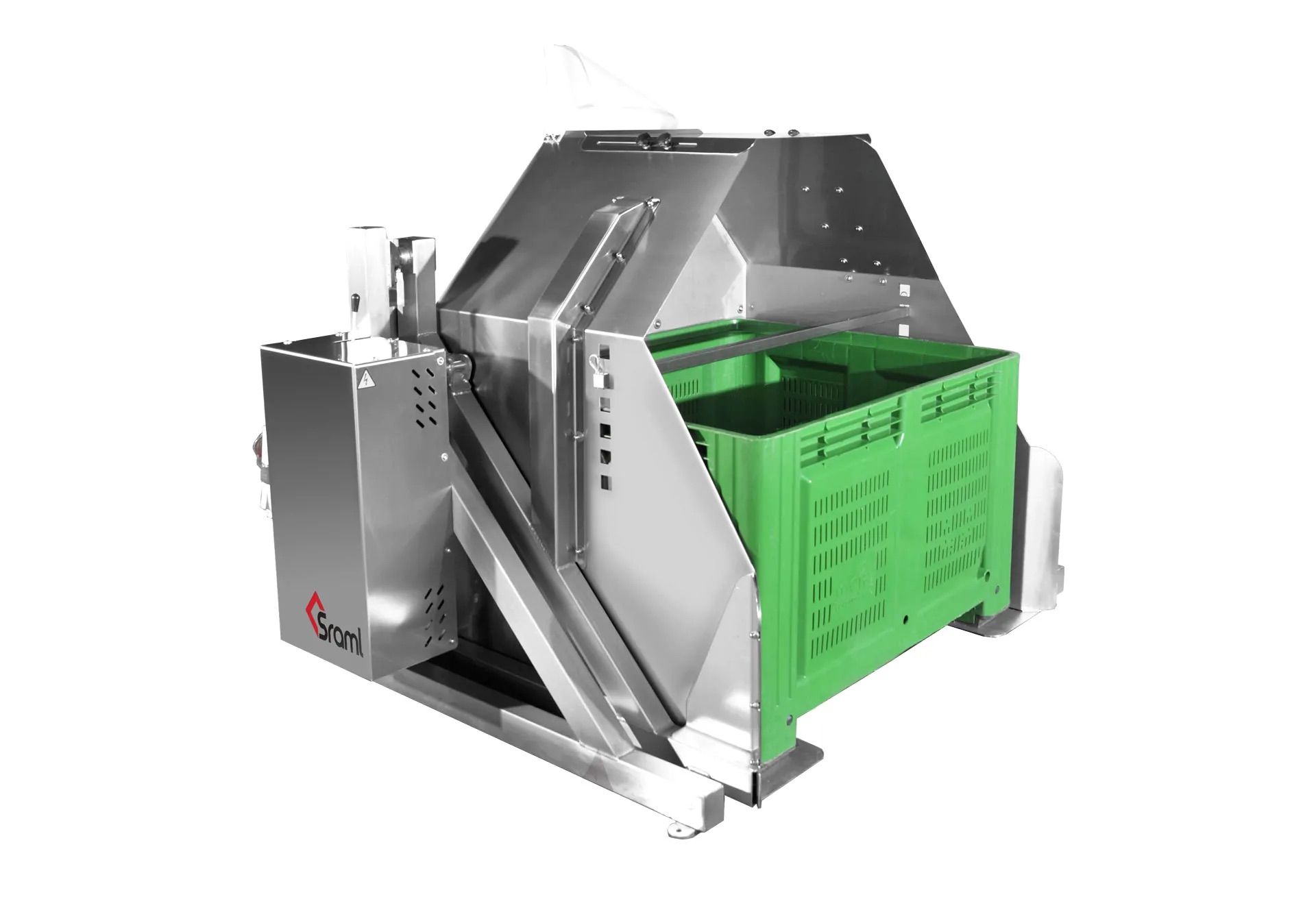

Sraml's bin tipper solves the issue without a forklift, and lets you unload your bin from ground height. You can use a regular pallet jack to put a bin into the Sraml Bin Tipper. A hydraulic lift will raise and invert the bin, directing material out of a stainless steel chute that minimizes spilling.

Load an elevator or sorting table easily and safely. You can slowly open the door to precisely dose material onto the next phase.

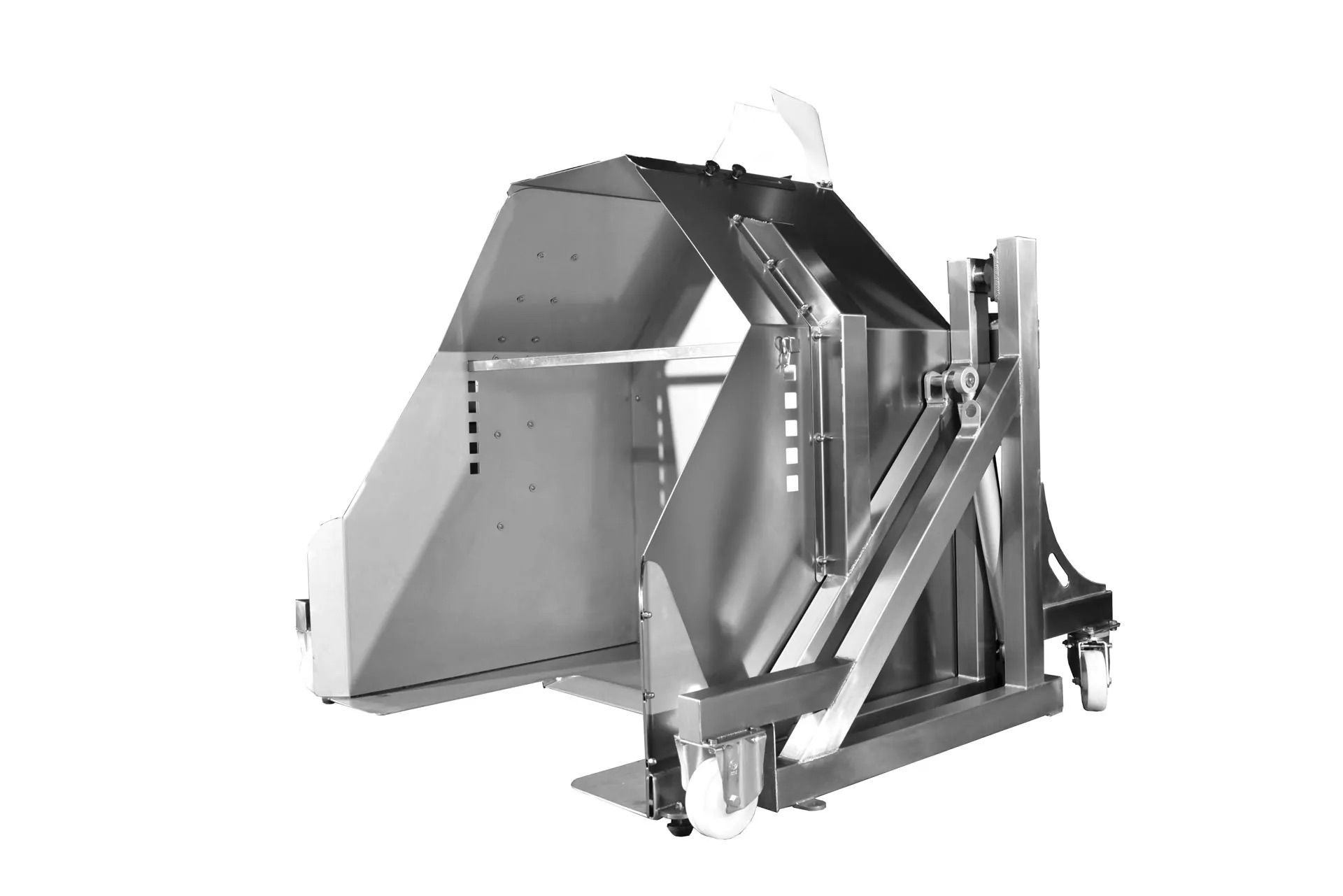

The unit is available in different sizes to accommodate different-sized bin, with 1/2-ton bins (Probin 24-S) being the most common. It's available on wheels, or fixed in place.

Specifications:

  • Stainless Steel construction
  • Hydraulic lift station
  • Directs material gently out a an 18" x 12" door with adjustable opening
  • Raises bins to an output height of 36" or 47.25" (high model)
  • Available in wheeled or fixed-place versions
