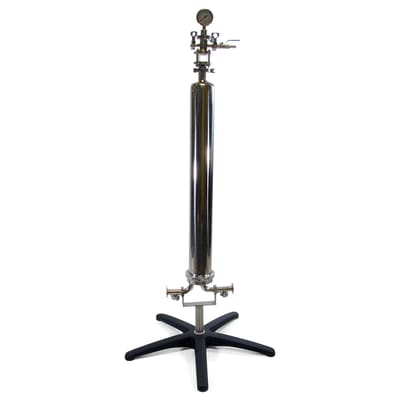

TCW Pedestal Mounted Filter Housings

Please select from the options below
$805.00 - $1,895.00

Requires Freight Shipping

This item is too large to ship by parcel carriers. We'll ship it on a pallet and reach out to you with freight quotes prior to shipping. Keep in mind that heavier pallets are usually cheaper to ship than lighter ones, so consider adding more items to your order to save on shipping costs overall.

Overview

The biggest complaint we hear from anyone who's bought a standard filter cartridge housing with spindly tripod legs is that they're prone to tip over. It's not a huge deal, but obnoxious enough that we designed this large pedestal base filtration setup for one or two cartridge housings and they've sold very well. The people who've used one of these say they'll never change (unless it's to a cart-mounted setup).

These include the filter housings. We also add a few upgrades over the basic cartridge housings as well to make filtering a little bit easier. To wit, we add on our Filter Housing Topper for easier venting and a sight glass to monitor filtration.

  • All sizes accept P7 (Code 7) cartridges from 10 to 30 inches in length
  • Integrated sight glass allows you to visually ensure that filters are completely submerged
  • 0-6 bar pressure gauge for checking that filter is not clogged, and is operating normally
  • 1.5-inch Tri Clamp in, out & top connections
  • Capped 1/2-inch Tri Clamp drains on inlet & outlet
  • Two 1/2-inch Tri Clamp vent, inlet, outlet connections at top
  • Double cartridge housing allows you to configure for parallel flow (2x the throughput) or in-series, allowing you to run pre-filtration and final filtration in one pass
