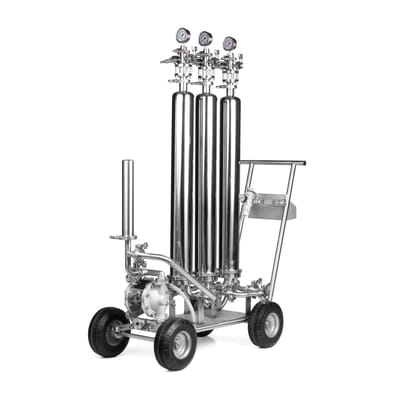

TCW "TriplePlus" Cartridge Filtration System with Pump

Go from coarse to fine filtration in a single pass with our TriplePlus system on a cart.

Please select from the options below
$5,545.00 - $7,555.00

Requires Freight Shipping

This item is too large to ship by parcel carriers. We'll ship it on a pallet and reach out to you with freight quotes prior to shipping. Keep in mind that heavier pallets are usually cheaper to ship than lighter ones, so consider adding more items to your order to save on shipping costs overall.

Overview

Hang on a sec. Three cartridge housings on a cart plus pump? Have we gone berserk? No, our customers requested it, so we built it.

Go from coarse to fine filtration in a single pass with our TriplePlus system. Powered by one of our SimpleSeries air diaphragm pumps from Versa-Matic, it is the perfect tool for wine and spirits producers who wish to polish and clarify their product with the accuracy of membrane cartridge filtration in a powerful all-in-one package.

Choose the pump type that best suits your application:

SimpleAir: A tough and economical polypropylene body with Santoprene diaphragms make this pump well-suited to wine, beer, and low-proof spirits.

SimpleWine: 316 Stainless Steel wetted parts and Santoprene diaphragms for excellent compatibility with wine and beer, as well as more acidic products like cider.

SimpleSpirits: A fully-groundable 316 Stainless Steel body with ATEX certification for higher-proof spirits. SimpleSpires 12 & 43 pumps provide 12 & 43 GPM of max potential flow rate, respectively.

SimpleSolvent: A fully-groundable 316 Stainless Steel body with ATEX certification and PTFE diaphragms for cold filtration in extraction applications. SimpleSolvent 12 & 35 pumps provide 12 & 35 GPM of max potential flow rate, respectively.

Specifications
  • Three 30" cartridge housings mounted in series allow you to go from coarse to fine filtration in a single pass
  • Different pumps available for processing different materials max flow rate air diaphragm pump
  • 12 GPM pumps require 10 CFM at 60 psi for max flow
  • 35 & 43 GPM pumps require 30 CFM at 60 psi for max flow
  • All 304 stainless steel cart
  • Built-in tool tray
  • Air inlet ball valve and regulator for speed control
