Conical Bottom Stainless Steel Tanks

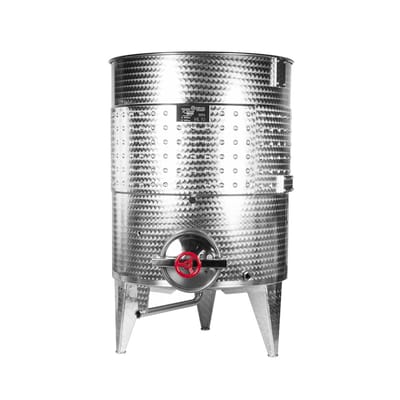

Conical bottom 1000 liter tank with cooling jacket and variable capacity floating lid

• 1000 liters / 264 gallons capacity
• Dimensions: 1030 x 1250 mm
• Floating lid with seal, pump, and plastic pressure relief valve
• 5% conical bottom
• 1.5" TC bottom drain
• 1.5" TC racking port (valve and racking arm sold separately)
• 400 mm round bottom manway
• 3/8" sample valve port
• 3/4" thermocouple port
• Welded legs with adjustable feet
• Body thickness: 1.5 mm
• Bottom thickness: 1.5 mm
