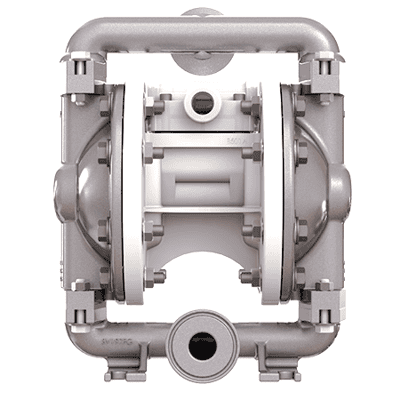

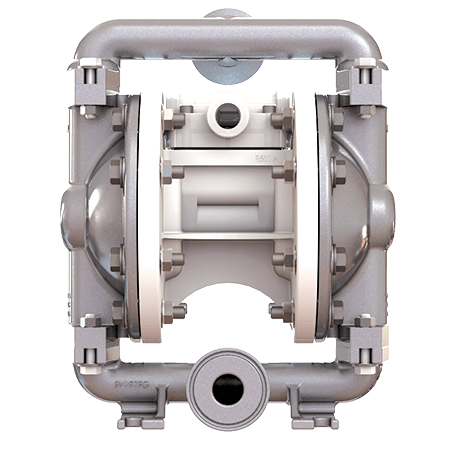

SimpleSanitary 12 Air Diaphragm Pump For Wine & Beer

Please select from the options below
$1,795.00 - $2,395.00

Requires Freight Shipping

This item is too large to ship by parcel carriers. We'll ship it on a pallet and reach out to you with freight quotes prior to shipping. Keep in mind that heavier pallets are usually cheaper to ship than lighter ones, so consider adding more items to your order to save on shipping costs overall.

Overview

Small but mighty, the SimpleSanitary 12 is the perfect all-rounder for transfer tasks that don't require huge flow rates. With a max flow of 12 GPM, it can find a place anywhere. Its small size makes it ideal for barrel transfers, topping, and even filtration when paired with a pulsation smoother.

The SimpleSanitary comes with a highly-polished body and smooth cast Tri Clamp ports at the inlet and outlet, leaving no quarter for spoilage or contamination micro-organisms. The center section is made of durable polypropylene, which withstands harsh caustics better than aluminum center sections found on other AODD pumps.

Although they're light enough to be carried by hand, we can also cart mount them for extra stability and protection.

It will require up to 10 CFM of compressed air in order to run at full speed, but even 5 CFM will net you about 8-9 GPM of open discharge flow.

Specifications:
  • 316 SS Body & Wetted Parts
  • Polypropylene air motor center
  • 1.5" Tri Clamp inlet/outlet
  • Transfer rates up to 12 GPM @ 10 CFM of air flow
