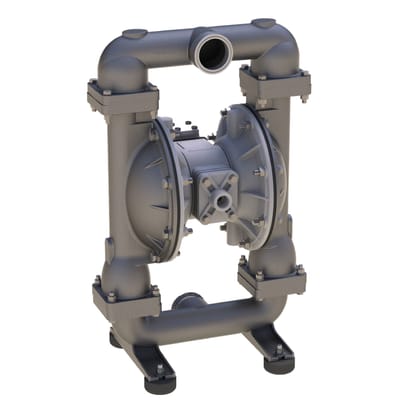

Sandpiper T20 Wine & Beer AODD Pump, 2.5" TC, 200 GPM
Commercial wineries and breweries who love gentle, powerful pumps: prepare to fall in love with the T20. Up to 59% more efficient than comparable pumps from Wilden or Yamada, it is the gold standard for AODD pumps.
Overview
Speed & efficiency go hand-in-hand when using the Sandpiper T20 AODD pump. With flow rates up to 200 GPM, it can unload tanker trucks and large fermenters in no time flat. This makes it ideal for commercial wineries and breweries looking to move large volumes of wine, beer, mash, wort, really any liquids or products with solids in suspension up to about 1/4" in diameter.
The T20 uses a next-generation air motor design that leaves competitive pumps like those from Wilden & Yamada in the dust, using up to 59% less air. That means when using the same air compressor you already have, you can get higher flow rates. Or you can turn your compressed air supply down to save on energy and get the same flow rates with reduced power usage.
Sandpiper's Wine & Beer Pump is made from sanitary, all-316 stainless steel cast metal parts. The diaphragms are made from FDA-grade Santoprene to ensure product purity. Breweries will be glad to know that the central section is composed of aluminum coated with a tough epoxy that is resistant to washdown chemicals commonly used for cleaning and sanitizing, ensuring you can get the pump squeaky clean inside and out.
If you've ever had to work on the air side of a pump before, you know it can be tricky and time-consuming. Not anymore. Sandpiper's ESADS+ (Externally Serviceable Air Distribution System) saves hours, literally. ESADS+ allows full access to the main and air pilot valves without the need to disassemble or take the pump out of service for replacement. What used to take an hour now takes five minutes.
We can outfit the pump in several ways:
Bare Pump: This is just the bare pump, straight from the box. Getting a bare pump means you will be setting up air flow controls and hookups to your air line yourself.
Air Control Kit: We add a quick-connect fitting to hook up to your air line, a filter-regulator to protect debris from entering the air motor and allow you to set the max pressure, and a ball valve that allows you to quickly control the pump's speed or shut it off completely. Everything is welded to a heavy-duty mounting plate and bolted to the body of the pump. This is the "plug and play" setup if you don't need a cart.
Air Control Kit + Cart: This includes everything in the air control kit, with the pump and all pieces mounted to one of our stainless steel carts, featuring a basket for small parts and high-capacity foam-filled wheels. We highly recommend a cart on all 1" and larger AODD pumps unless you plan to permanently mount the pump in one spot.
Specifications- 2.5" Tri Clamp Inlet/Outlet
- 316 Cast Stainless Steel Construction
- Flow rates up to 200 GPM
- Easily-cleanable or serviceable air distribution system (ESADS+)
- FDA-grade Santoprene diaphragms and ball valves
- Open discharge flow with 10, 20, 40, 80, 100, or 120 SCFM air compressor: 45, 90, 140, 155, 175, and 200 GPM, respectively
- Consult performance chart for specific duty points
